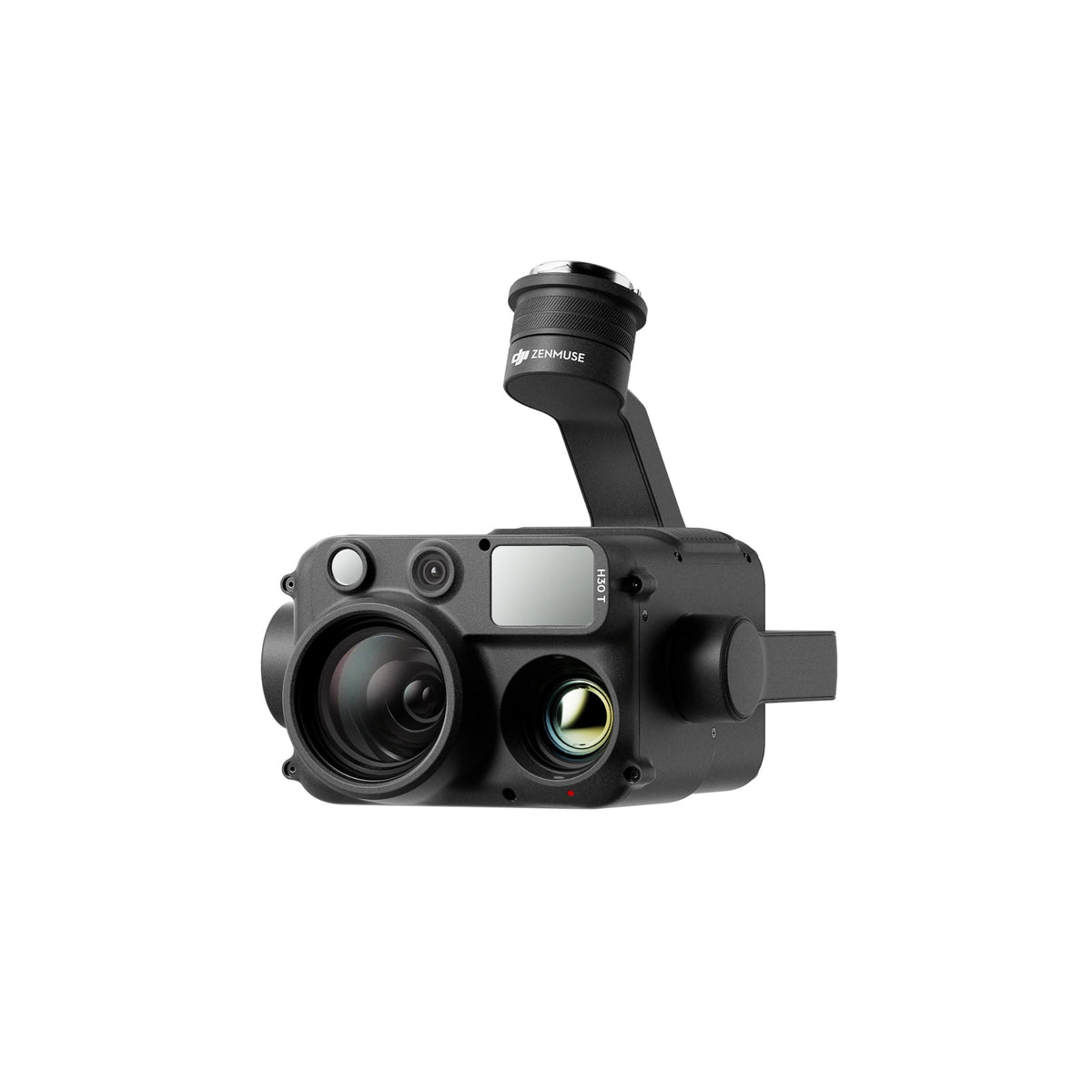

DJI Zenmuse H30T

Advanced Multi-Sensor Payload for Professional UAV Operations

Compatible with the DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK, the H30T provides a powerful and flexible sensing solution for professional UAV operations.

See More. Day or Night.

The H30T combines five sensing systems:

• 48 MP wide-angle camera
• 40 MP zoom camera
• 1280 × 1024 thermal camera
• Laser rangefinder
• NIR auxiliary light

This multi-sensor configuration allows operators to switch between visual, thermal and night-scene imaging without changing payloads.

High-Resolution Thermal Imaging

The H30T features a 1280 × 1024 infrared sensor, providing four times the resolution of the previous H20T thermal sensor.

Its thermal system supports multiple gain modes, including a High-Resolution mode designed to help identify targets with small temperature differences.

With an optional infrared density filter, temperature measurement can extend up to 1,600°C, making the H30T suitable for demanding industrial inspection applications.

Powerful Optical Zoom

The H30T's zoom camera combines a 40 MP 1/1.8-inch CMOS sensor, 34× optical zoom and up to 400× digital zoom.

This enables operators to inspect assets and subjects from a safe distance while retaining detailed visual information.

The wide-angle and zoom cameras can also capture 4K UHD video at 30 fps.

Long-Range Laser Measurement

The integrated laser rangefinder provides measurements at distances of up to 3,000 metres, allowing operators to determine the location and distance of points of interest.

This can be particularly valuable for infrastructure inspection, public safety, surveying and situational awareness applications.

Night-Time Operations

The H30T is designed for operations where visibility is limited.

Night Scene Mode combines enhanced imaging with the integrated NIR auxiliary light, helping operators identify details in dark environments.

The system can operate in colour or black-and-white night vision modes, giving operators greater flexibility when working after dark.

Built for Professional Applications

Smart Features

When paired with the DJI Matrice 400, the H30T supports additional intelligent capabilities including visual and thermal AI detection for vehicles, vessels and subjects.

Other features include Smart Track, AI Smart Detection, electronic dehazing and foreground stabilisation to improve inspection efficiency and image quality.

Rugged & Weather Resistant

The H30T is IP54 rated and designed to operate from -20°C to 50°C, making it suitable for demanding professional environments.

Its 3-axis stabilised gimbal provides stable imagery during flight while the detachable DJI SKYPORT mounting system allows straightforward integration with compatible DJI enterprise aircraft.

Compatible Aircraft

• DJI Matrice 400
• DJI Matrice 350 RTK
• DJI Matrice 300 RTK with DJI RC Plus

The H30T can be mounted to compatible gimbal ports on these aircraft.

Aircraft, batteries and other accessories shown in images are not included unless specifically stated in the selected configuration.
